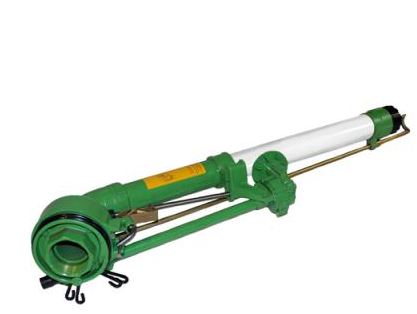

Vedant SIME Mariner Raingun (Turbine Drive) is a large capacity model with a jet length from 42 to 67m and discharge range from 900 to 2000 LPM. Generally a high head pumpset in the range of 20 to 30 HP is required for Mariner operation. It can also be operated with tractor driven high head pump.
It is equipped with interchangeable nozzles and an adjustable jet-breaker providing a uniform distribution of rain over the entire irrigated area. No tools are required to change the operation of this sprinkler from part circle to full circle and the nozzles are interchangeable by hand!

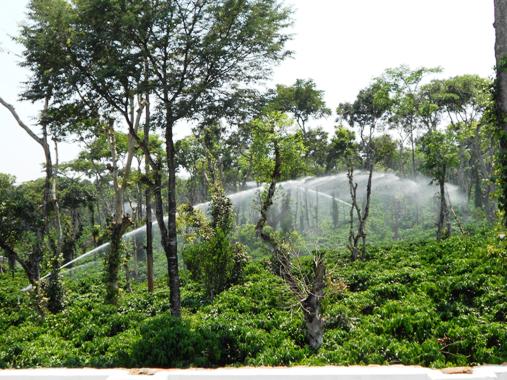

Mariner is constructed from quality materials. It is extensively used for dust suppression and coffee plantation irrigation in Southern India.
Radius (Jet Length) | 140 to 220 Feet |
---|---|
Flow range | 900-2000 LPM |
Trajectory | 250 |
Inlet Size | 2.5 Inch Female Standard National Pipe Thread |
Inlet water pressure range | 4 to 8 Kg/cm2 |
Pump Power Required | 15 to 25 HP |
Circular Area covered by One Mariner Raingun | Up to 2.7 Acre |
Nozzle Side Included | 28 mm |
30 mm | |
32 mm | |
34 mm | |
(Optional Sizes 22 mm) |
Nozzle Diameter | Water Pressure | Jet length (Throw Radius) | Discharge Capacity | Dist. between two positions of laterals (Square Pattern) | Irrigated area (Square Pattern) | Rain fall per hour | ||
---|---|---|---|---|---|---|---|---|
mm | kg/cm2 | m | feet | l/min | m3/h | m | m2 | mm/h |
26*8 | 3 | 42 | 137 | 800 | 48 | 75 | 3150 | 12.4 |
4 | 47 | 154 | 926 | 55.5 | 84 | 3948 | 12.2 | |
5 | 51 | 168 | 1036 | 62.2 | 91 | 4641 | 11.9 | |
6 | 54 | 177 | 1135 | 68.1 | 97 | 5238 | 11.8 | |
28*8 | 3 | 45 | 162 | 917 | 55 | 81 | 3645 | 15.0 |
4 | 49 | 170 | 1061 | 63.7 | 88 | 4312 | 14.8 | |
5 | 52 | 183 | 1186 | 71.2 | 93 | 4836 | 14.7 | |
6 | 55 | 195 | 1300 | 78 | 99 | 5445 | 14.3 | |
30*8 | 4 | 50 | 164 | 1207 | 72.4 | 90 | 4500 | 16.0 |
5 | 54 | 177 | 1350 | 81 | 97 | 5238 | 15.5 | |
6 | 57 | 190 | 1479 | 88.7 | 102 | 5814 | 15.2 | |
7 | 61 | 201 | 1594 | 95.6 | 109 | 6649 | 14.8 | |
32*8 | 4 | 52 | 170 | 1361 | 81.7 | 93 | 4836 | 16.9 |
5 | 56 | 183 | 1522 | 91.3 | 100 | 5600 | 16.3 | |
6 | 59 | 195 | 1668 | 100 | 106 | 5254 | 15.9 | |
7 | 62 | 206 | 1798 | 107.9 | 111 | 6882 | 15.7 | |
34*8 | 5 | 57 | 188 | 1708 | 102.5 | 102 | 5814 | 17.6 |
6 | 61 | 200 | 1872 | 112.3 | 109 | 6649 | 16.9 | |
7 | 64 | 211 | 2018 | 121 | 116 | 7360 | 16.4 | |
8 | 67 | 223 | 2162 | 129.7 | 122 | 8040 | 16.1 |
