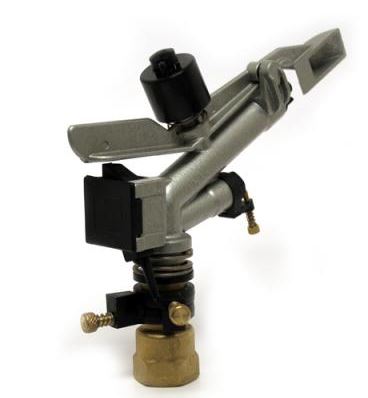

Vedant SIME Ibis Raingun (Impact Drive) has a jet length from 13 to 23 m and discharge range from 40 to 160 LPM. It is constructed with adjustable stops for full or part circle coverage and an adjustable jet breaker for changes stream pattern.

Quick change nozzle setup and heavy aluminum construction with brass lower turning union is supported by a 1 inch female standard pipe thread connection. The Ibis Sprinkler features a secondary nozzle for close range coverage with jet breakers on main and secondary streams. The Ibis sprinkler can be used on a range of traveling irrigators and fixed installations.

Features & Benefits

  • Part Circle/ Full Circle rotation facility
  • Adjustable Jet Breaker providing uniform
  • distribution of water all over the irrigated area
  • Quick change nozzle setup
  • Light and uniform rainfall for use on fragile plants
  • Heavy aluminum construction
  • Low maintenance
  • Gives highest watering efficiency

Primary Application

  • Fire Prevention And Control
  • Irrigation
  • Sports fields(Cricket,Football,Hockey,School grounds etc)
  • Golf Courses, Lawns, Gardens
  • Dust suppression
Radius (Jet Length) 42 to 75 Feet
Flow range 40 to 160 LPM
Trajectory 280
Inlet Size 1” Female Standard Pipe Thread
Inlet water pressure range 1.5 to 5 Kg/cm2
Pump Power Required Depends on number of sprinklers
Circular Area covered by One Ibis Raingun Upto 0.41 Acre
Nozzle Side Included 06mm
08mm
10mm

Specifications:

Nozzle
Diameter
Water
Pressure
Jet length
(Throw Radius)
Discharge
Capacity
Dist. between two
positions of laterals
(Square Pattern)
Irrigated area
(Square Pattern)
Rain fall
per hour
mm kg/cm2 m l/min m3/h m m2 mm/h
4*6 1.5 13 40 2.4 18 324 7.4
2 15 46 2.8 21 441 6.4
3 17 56 3.4 24 576 5.9
4 18 65 3.9 25 625 6.2
4*8 1.5 14.5 61 3.7 20 400 9.2
2 16.5 71 4.3 23 529 8.1
3 18 86 5.2 25 625 8.3
4 19 100 6.0 26 676 8.9
4*10 2 17 102 6.1 24 576 10.6
3 19.5 124 7.4 27 729 10.2
4 21 144 8.6 29 841 10.2
5 23 161 9.7 32 1024 9.5
