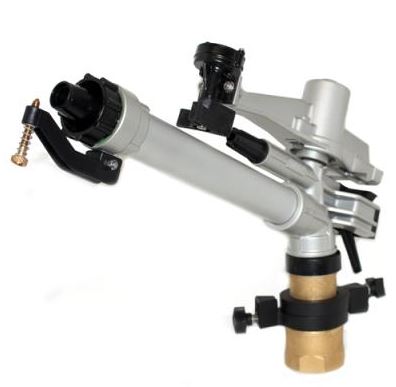

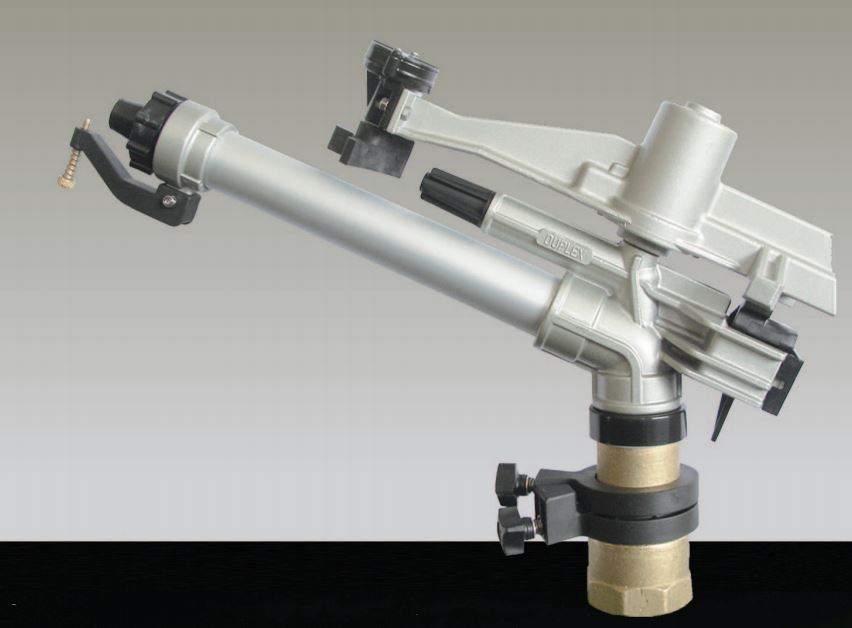

Vedant Sime's Duplex Raingun (Impact Drive) is for medium flow rates and pressures, with full circle or part circle operation. It is available with a range of interchangeable nozzles and an adjustable jet-breaker, providing a uniform distribution of water all over the irrigated area. The Duplex sprinkler can be used on a range of travelling irrigators and fixed installations. This sprinkler offers simplicity and a large versatility.
Radius (Jet Length) | 65 to 130 Feet |
---|---|
Flow range | 159 to 680 LPM |
Trajectory | 250 |
Inlet Size | 2” |
Pump Power Required | 5 to 12.5 HP |
Circular Area covered by One Klicker Raingun | Upto 1.2 Acre |
Nozzle Side Included | 14mm |
16mm | |
18mm |
Nozzle Diameter | Water Pressure | Jet length (Throw Radius) | Discharge Capacity | Dist. between two positions of laterals (Square Pattern) | Irrigated area (Square Pattern) | Rain fall per hour | ||
---|---|---|---|---|---|---|---|---|
mm | kg/cm2 | m | feet | l/min | m3/h | m | m2 | mm/h |
14*8 | 2 | 25 | 230 | 230 | 13.8 | 35 | 1225 | 11.2 |
3 | 29 | 280 | 280 | 16.8 | 41 | 1681 | 9.9 | |
4 | 32 | 325 | 325 | 19.5 | 45 | 2025 | 9.6 | |
5 | 34 | 364 | 364 | 21.8 | 48 | 2304 | 9.5 | |
16*8 | 2 | 27 | 282 | 282 | 16.9 | 38 | 1444 | 11.7 |
3 | 31 | 344 | 344 | 20.6 | 43 | 1849 | 11.1 | |
4 | 34 | 399 | 399 | 23.9 | 48 | 2304 | 10.4 | |
5 | 37 | 446 | 446 | 26.7 | 52 | 2704 | 9.9 | |
18*8 | 2 | 28 | 343 | 343 | 20.6 | 39 | 1521 | 13.5 |
3 | 33 | 434 | 434 | 26.0 | 46 | 2116 | 12.3 | |
4 | 36 | 506 | 506 | 30.3 | 51 | 2601 | 11.6 | |
5 | 40 | 561 | 561 | 33.6 | 56 | 3136 | 10.7 |
