Rain Guns Solution

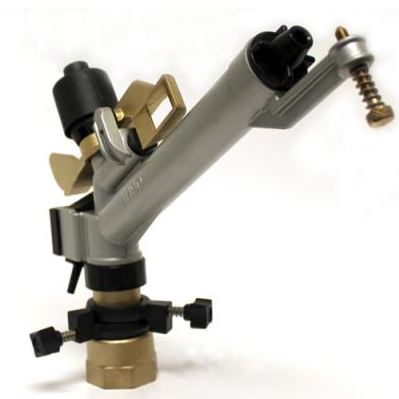

Vedant SIME Ambo Raingun (Impact Drive) is used for small areas with jet length from 16 to 26 m at a discharge range of 80 to 375 LPM .It can operate even at a very low pressure of only 1.5 kg/cm2 and is most suitable for small farms, nurseries, gardens and lawns. High head 3 to 7.5HP pump sets are suitable for this Rain-gun.

A Quick change nozzle setup and heavy aluminum construction compliment the brass lower turning union with a 1.5 inch female standard pipe thread connection. In addition, the Ambo Sprinkler features a unique drive arm that is shorter than most sprinklers of similar size and drives off of a smaller secondary nozzle positioned on top of the main barrel. This allows the main stream of water from the primary nozzle to gain ultimate distance without being affected by the drive arm motion. Also, the Ambo Sprinkler has a slower reversing motion than most impacts. It works well under lower pressures especially when utilizing the jet breaker to diffuse the main nozzle pattern.

Features & Benefits

  • Part Circle/ Full Circle rotation facility
  • Adjustable Jet Breaker for changes in stream pattern
  • Quick change nozzle setup
  • Light and uniform rainfall for use on fragile plants
  • Slower reversing motion compared to other impact Rainguns
  • Works well under lower pressures
  • Low maintenance
  • Gives highest watering efficiency

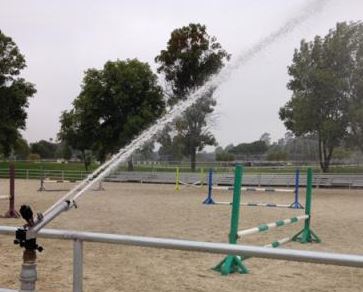

Primary Application

  • Fire Prevention And Control
  • Irrigation
  • Sports fields(Cricket,Football,Hockey,School grounds etc)
  • Golf Courses, Lawns, Gardens
  • Dust suppression
Radius (Jet Length) 60 to 85 feet
Flow range 80 to 375 LPM
Trajectory 300
Inlet Size 1.5” Standard Pipe Thread
Inlet water pressure range 2 to 5 Kg/cm2
Pump Power Required 3 to 7.5 HP
Circular Area covered by One Ambo Raingun Upto 0.5 Acre
Nozzle Side Included 10mm
12mm
14mm
(Optional Sizes 8mm and 16mm)

Specifications:

Nozzle Diameter Water Pressure Jet length (Throw Radius) Discharge Capacity Dist. between two positions of laterals (Square Pattern) Irrigated area (Square Pattern) Rain fall per hour
mm kg/cm2 m l/min m3/h m m2 mm/h
7*8 1.5 16 86 5.1 22 484 10.5
2 17.5 99 5.9 24 576 10.2
3 19.5 121 7.2 27 729 9.9
4 21 140 8.4 29 841 9.9
7*10 2 18 130 7.8 25 625 12.4
3 21 159 9.5 29 841 11.3
4 23 184 11.0 32 1024 10.7
5 24.5 207 12.4 34 1156 10.7
7*12 2 19.5 169 10.1 27 729 13.8
3 22 207 12.4 31 961 12.9
4 25 239 14.3 35 1225 11.7
5 27.5 269 16.1 38 1444 11.1
7*14 2 20.5 215 12.9 29 841 15.3
3 23.5 264 15.8 33 1089 14.5
4 26 305 18.3 36 1296 14.1
5 28.5 342 20.5 40 1600 12.8
7*16 2 21 267 16.0 29 841 19.0
3 24 328 19.6 33 1089 18.0
4 26.5 379 22.7 37 1369 16.6
5 29 414 24.8 41 1681 14.7
